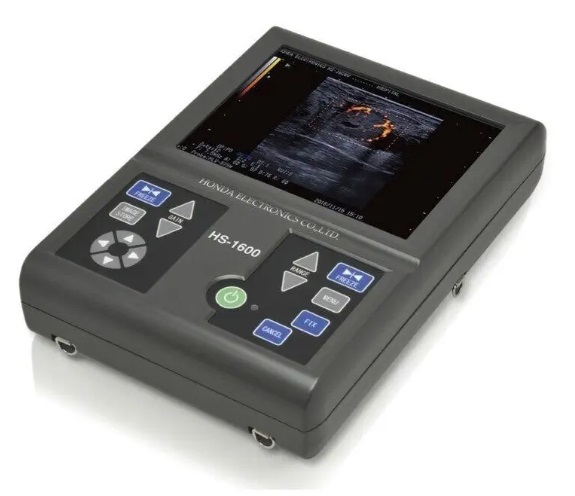

Honda HS 1600V Veterinary Ultrasound

Easy to carry light compact body of approximately 3kg (6.6lb) and reduce user's physical strains during scanning in house visit and outdoors.

Excellent ultrasound images

Mobile body with highest image quality of ultrasound diagnostic that representing scanning region in detail.

H-res is an advanced image enhancement technology which is developed by us

* Resolution visualizes delicate tissue structure in shallower region.
* Penetration visualizes good resolution in deeper organs.
* Boundary visualizes bones for observation.
* Clarity reduces the noise in blood vessel.
* Mild reduces the image enhancement effect.
* OFF has direct ultrasound image.

Doppler functions

Honda Color Flow Mapping (CFM) and Power Doppler (PD)functions do not degrade Black and White image quality when in use. (CFM and PD available for HLV-875M, HCS-8712M, HCS-736M, HLS-884M and HLS-882MT

Compact body, easy to carry

Easy to carry light compact body of approximately 3kg and reduce user's physical strains during scanning in house call and out doors.

Both battery and AC power usable

Integrated high performance lithium ion battery in the body realizes 3 hours use in the place without power supply.
Equipped report function of battery lasting time makes battery sign lights to inform when lasting time become short.

Usable in any places

High luminance liquid crystal display with glass bonding treatment enhances visibility, diagnosis images are clearly projected even under the direct sunlight. Liquid crystal display gets no fogged even when temperatures and humidity varies rapidly.

Specifications:

- Scanning method: Linear and Convex Electric Scan
- Display mode: B, B/B, B/M. M, B/Z
- Range 3.5MHz or more:
  * 0〜2-24cm (1cm step:Adjustable）
  * 0〜2-16cm (1cm step:Adjustable)
- Beam Focus Method:
  * Full Digital Method
  * 4 Stages Dynamic Transmission Focus
  * Dynamic Receiving Focus
- Rated ultrasonic frequency: 1.5〜11.0MHz
- Display Monitor:
  * 8.4 inch color LCD (800 X 600SVGA)
  * Wide viewing angle (horizontal: 170° vertical: 170°)
- Image display: Up/Dow, left/right flip
- Image Adjustment:
  * B gain M gain: 36 to 100db in 1db steps
  * Dynamic range: 35 to 95db in 10db steps (1db adjustable)
  * STC: 5 types
  * Sound power: 20 to 100% (10% step)
  * Gamma curve: 5 types
  * H-res (image processing) Soft: OFF + 4 levels, Edge: OFF + 3 levels
  * Edge: OFF + 3 levels
  * M-scanning speed: 5 steps
- Doppler Functions:
  * CFM, PD
  * Available when HLV-875M, HCS-8712M, HCS-736M, HLS-884M, HLS-882MT probes are connected
- Doppler detection range:
  * Vertical mode, Box mode
  * Not available when HLS-882MT is connected.
- Cine memory: 255 Frame
- Measuring Functions: Distance, area, perimeter, volume, Tendon%, histogram Gestational week, speed, LV measurement
- Character display:
  * Hospital name (40 characters), patient name (30 characters), ID (26 characters), age, gender, DOB (birthday), date, time, probe name, and
  * DOB (Date of Birth), Date, Time, Probe Name, Range, Gain, Sound Power, Frequency, Dynamic Range, Gamma
  * Range, Gain, Sound Power, Frequency, Dynamic Range, Gamma
  * H-res, grayscale, focus information
- Probe Connector: x1
- External Dimensions: 220mm (W) x 308mm (H) x 69mm (D)
- Weight: Approx. 3 kg (excluding probe)
- Power:
  * 100-240V AC 50/60Hz when connected to AC adapter
  * Battery 14.8V 5000mAh
- Number of data storage:
  * Still image (JPEG) 100 internal (max.) / external USB memory
  * Still image (DICOM) External USB memory
  * Video (AVI) External USB memory
- Probe:
  * Linear probe (for rectal use) (10.0/7.5/5.0MHz 50mm) HLV-875M
  * Linear probe (11.0/8.5/6.0MHz 40mm) HLS-884M
  * Micro Convex Probe (9.0/7.5/5.0MHz 12R) HCS-8712M
  * Convex probe (5.0/3.5/2.8MHz 60R) HCS-736M
  * OPU (transvaginal egg collection) probe (9.0/7.5/5.0MHz 10R) HCV-7710MV
  * Meat science (3.0/2.0/1.5MHz 120mm) HLV-7212M
  * T-shaped probe (11.0/8.5/6.0MHz 15mm + 25mm) HLS-882MT

Package Includes:

- Honda HS 1600V
- Probes
- Shoulder Belt
- AC Adapter
- Power Cord
- Battery Charger
- Battery Pack
- Ultrasound Gel
- Protection Cover
- Carrying bag
